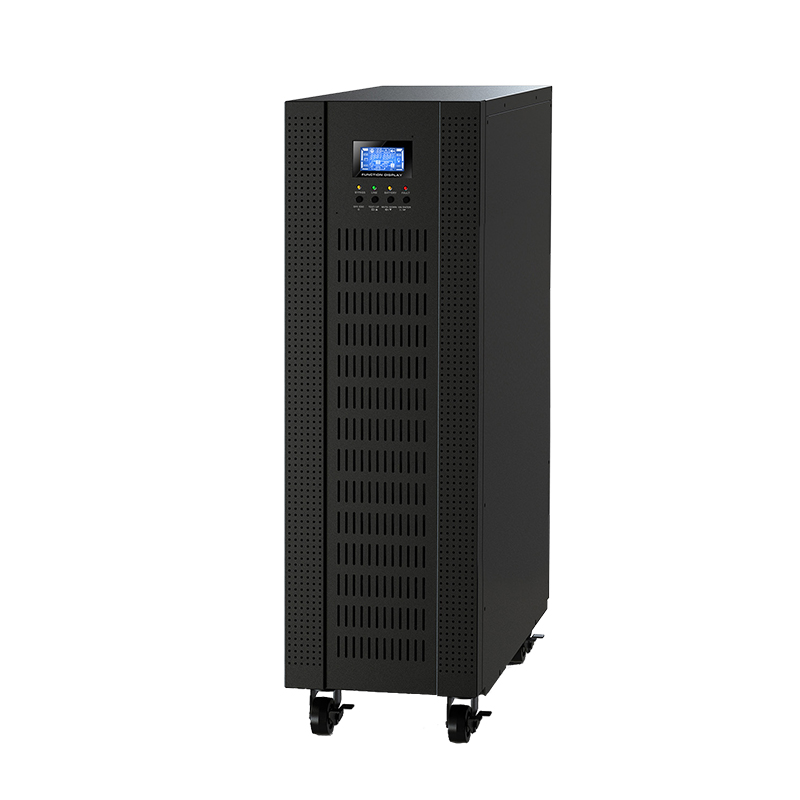

Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS

  • 1
  • 2
  • 3

Brand Name : ZGD

Model Number : ZGD33-60K (L)

Place of Origin : Guangdong, China

MOQ : 1

Price : $400.00/Pieces 1-9 Pieces

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 15-30 work days

Phase : Three Phase

Protection : Lightning

Weight : 108kg

Type : On-line

Application : COMPUTER

Product name : Online UPS Systems

Capacity : 60KVA

Wave Form : Pure Sine Wave

Battery Type : Lead Acid Battery

Color : Black

Certificate : CE,ULRohs,GS

Input voltage : 305-478VAC

Display : LCD

Name : High Frequency Ups Power

Products : Three Phase Online UPS

Port : Shenzhen

Contact Now

High Frequency UPS Power Supply 3 Phase Input 3 Phase Output Pure Sine Wave Online UPS 60KVA
True double-conversion
DSP technology guarantees high performance
Output power factor 0.9
Wide input voltage range (110-300 VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
Eco mode operation for energy saving (ECO)
Accepts dual power inputs
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy
Optional isolation transformer offers full isolation and complete common mode noise rejection
Model GH33
60KL 80KL 100KL 120KL
PHASE
CAPACITY 60KVA/54KW 80KVA/72KW 100KVA/90KW 120KVA/108KW
INPUT
Nominal Voltage 3 x 400 VAC (3 Ph+N)
Voltage Range 190-520 VAC (3-Phase) @ 50% Load; 208-478 VAC (3-Phase) @ 70% Load;
305-478 VAC (3-Phase) @ 100% Load 305-478 VAC (3-Phase) @ 100% Load
Frequency Range 46~54 Hz or 56~64 Hz 40~70 Hz
Power Factor ≥0.99 @ 100% Load
OUTPUT
Output Voltage 3 x 360*/380/400/415 VAC (3 Ph+N) 3 x 380/400/415 VAC (3 Ph+N)

AC Voltage Regulation

(Batt. Mode)

 ± 1%

Frequency Range

(Synchronized Range)

 46~54 Hz or 56~64 Hz

Frequency Range

(Batt. Mode)

 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤2 % THD (Linear Load); ≤2 % THD (Linear Load);
≤4 % THD (Non-linear Load) ≤4 % THD (Non-linear Load)

Transfer

Time

AC Mode to

Batt. Mode

 Zero
Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
Overload AC Mode 100-110% for 10 min, 110-130% for 1 min, 105-110% for 1 hr, 111-125% for 10 min,
>130% for 1 second 126-150% for 1 min, >150% for 200 ms
Battery Mode 100-110% for 30 seconds, 110-130% for 10 seconds, 105-110% for 1 hr, 111-125% for 10 min,
>130% for 1 second 126-150% for 1 min, >150% for 200 ms
Parallel Capacity up to 3 units in parellel up to 2 units in parellel
EFFICIENCY
AC Mode 94.00% 94.50%
ECO Mode 97.00% 98.00%
Battery Mode 93.50% 94.50%
BATTERY
Long-run Model Battery Type Depending on the capacity of external batteries
Numbers 32~40 pcs (Adjustable)

Charging

Current (Max.)

 8A 24A 32A
Charging Voltage +/- 13.65V x N (N=16~20) +/- 13.7V x N (N=16~20)
INDICATORS
LCD Display

UPS status, Load level, Battery level,

Input/Output voltage,

Discharge timer, and Fault conditions

5.7" monochrome LCD

or 10" Touch Type color LCD
ALARM
Battery Mode Sounding every 2 seconds
Low Battery Sounding every 0.5 second
Overload Sounding every second
Fault Continuously sounding
PHYSICAL
Long-run Model Dimension 790*360*1010mm 940*567*1000mm
Net Weight (kgs) 108 113 194 229
Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS
Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS

Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS

Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS

Lightning Protection 54KW 60 Kva Online UPS 3 Phase Input 3 Phase Output UPS
